Fiamma Caravanstore Zip

Description:

Fiamma Caravanstore Zip - Complete Awning and Panel System for your Caravan

The Fiamma Caravanstore ZIP is a complete Canopy and Panel System that combine to create a fully enclosed room. Can be used in total combination or as a modular system one panel at a time. The canopy of the Fiamma Caravanstore ZIP is fitted with two YKK zips at either end that enable the canopy to connect directly to the side panels, providing privacy and total protection from the wind and rain.

Caravanstore Zip Canopy (features as Caravanstore 2011)

The Fiamma Caravanstore is the original bag awning built especially for caravans. The success of the Caravanstore can be attributed to its clever design, which benefits the user in several ways. Firstly the Caravanstore itself does not require storage space inside the caravan, as it travels perfectly well on the side of the caravan. When in storage the Caravanstore lives comfortably inside the Polar White vinyl bag with self-lubricating YKK Zips. Provided the caravan does not have an obstruction that might inpeed the flat resting position of the Fiamma Caravanstore, it is perfectly safe to travel with the Caravanstore installed and thanks to the Anti-Shock roller, no damage can ocurr to the caravan or the rail.

The Fiamma Caravanstore is very well built and provides the caravaneer with robust and stable shelter from the sun, wind and rain. Despite its strengths it is important to respect the weather and pay attention to the ambient conditions to avoid unecessary damage to your Caravanstore. Another advantage of the Fiamma Caravanstore is its weight and small dimensions. The average weight of the Caravanstore is just 8.3 kilo's and when closed its waterproof bag is just 14 (H) x 7 (W) cm. This makes the Carvanstore exceptionally easy to use and very quick to set-up and pack away. With very little practise you can expect to have the Caravanstore set-up, pegged out and tweaked (excluding Privacy Room) to perfection in around 2-3 minutes!

The Caravanstore's clever design depends largely on the large, Round-Framed aluminium Roller-Tube. Firstly the telescopic supporting legs and the arms of the Caravanstore are stored inside the Roller-Tube when not in use, reducing the overall pack size. When setting up the Caravanstore these essential supports articulate via way of a clever joint system fixed inside the Roller-Tube. The wide Roller-Tube also ensures the canopy fabric remains perfect and wrinkle-free, even after long periods in storage. The exclusive system allows the Roller-Tube to be rolled under or over, as the user dictates.

The wall Rafter Support Kit is standard delivered and provides safe support for the awning rafters to prevent damage to the vehicle wall. No vibration when travelling and no loose parts fall out when opening the bag. The legs of the Fiamma Caravanstore can be fixed to the ground or directly against the caravan using the improved Wall Brackets supplied. To aid the stability of longer Fiamma Caravanstore ZIP reinforced Support Legs have been developed to strengthen the front Roller-Tube. Standard delivered with Caravanstore ZIP 360, 410 and 440 cm.

Canopy Fabric: Cool and cheerful canopy without seams in UV resistant, waterproof and washable vinyl. Bright colours printed on both sides. The Fiamma canopy guarantees higher resistance to UV rays. It does not fade in the sun and the absence of seams allows high resistance to water and tearing. It is flame retardant, can be rewound when damp, is light-resistant and is rot and waterproof.

Fiamma Caravanstore Zip Privacy Room

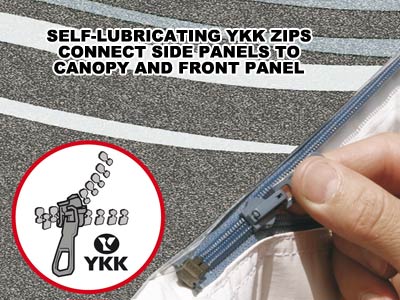

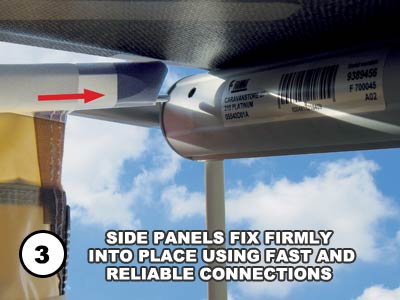

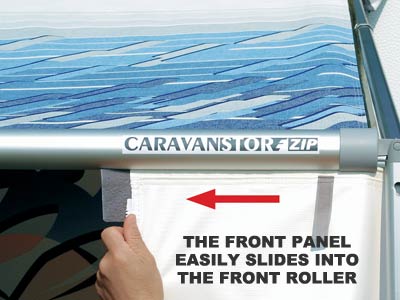

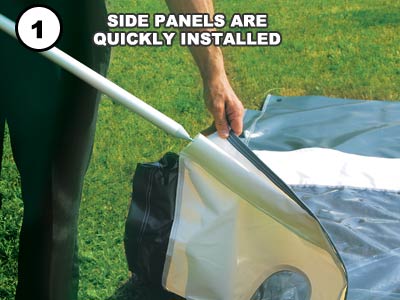

The Canopy of the Fiamma Caravanstore Zip is unique as it has two sturdy and self-lubricating YKK zips sewn into each end, allowing the connection of the ZIP side panels. The YKK Zip connection between the Zip panels and Canopy provides total water and wind insulation and total privacy. The front panel slides easily through the Roller-Tube is then secured to the side panels via another YKK Zip. Within minutes you can effectively double the living area of your caravan; with the awning transformed into a fully enclosed room (sometimes referred to as Safari Room), offering shelter and privacy for you and your family.

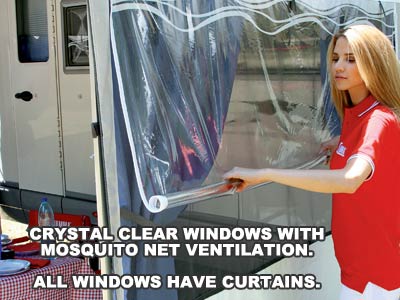

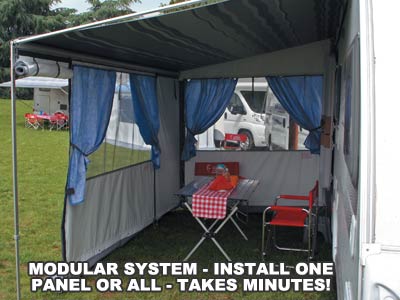

The stylish and modern Caravanstore Zip Privacy Room is available in white with a dark grey mudwall. It is easy to clean and complimentary to any caravan. All panels incorporate mosquito netting for summer time ventilation and roll-up exterior crystal clear windows. Windows are attractively printed and all are supplied with blue curtains for additional privacy. The front panel is made up of one window panel and a seperate roll-up doorway, which can be installed on the left or the right hand side, at your convenience. The walls of the Privacy Room are modular and can be used independently or inclusively, providing limited or total protection as prevailing weather dictates.

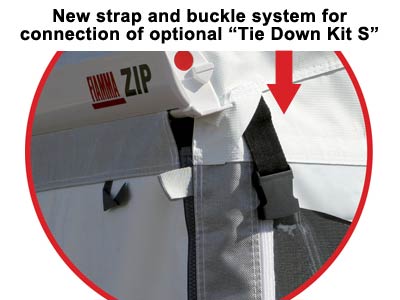

Tie Down Kit S Buckle and Strap System

Privacy Room side panels now feature the new 'S' strap and Buckle system that allows you to quickly fit the new, optional, Fiamma Tie Down Kit S.

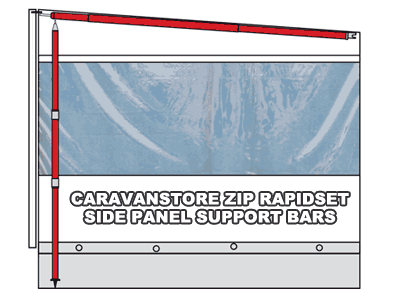

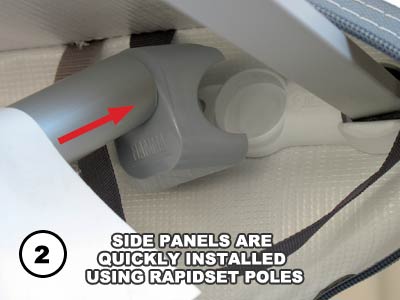

Standard Equipment: The awning, 1x front panel with separate door, 2x side panels, Rapid Set CS, Curtains Kit for 3 windows, Mega Bag holdall, Ground Pegs, Rafter Caravanstore standard delivered from 440 cm, Rafter Caravanstore Support Leg from 360 cm, self-adhesive shock absorbing foam pads.

How to Order

Please refer to the size chart below when reading the following instructions:

1. Awning Length A: Measure the straight section of your caravan awning rail. The reality is that few UK caravans with exception to some of the larger single and twin axle caravans have a truly straight awning rail. A perfect straight line is not necessary but you will need to take your measurement from between the curves at each end of the awning rail.
2. Height from Ground B: In order for the Privacy Room of the Fiamma Caravanstore Zip to fit correctly, the height of your awning rail from the ground should measure between 240 - 260 cm.

Use the drop-down list (prices displayed) at the top of the page to select the size and colour of your choosing then, simply select the quantity and hit the 'BUY' button.

Unfortunately Fiamma do not produce a Size Guide that confirms the size of awning required for your caravan. This means it is up to you to work out the correct size or range of sizes for your caravan. Of course you're not alone, we at Agentfiamma are here to offer as much support and advise as we possibly can. Remember if you need help you can call Agentfiamma for assisatance on 0161-902-3025.
