Carry-Bike Caravan XL A Pro 200

Description:

Compact Carry-Bike Caravan XL A Pro 200 for Shorter Drawbars

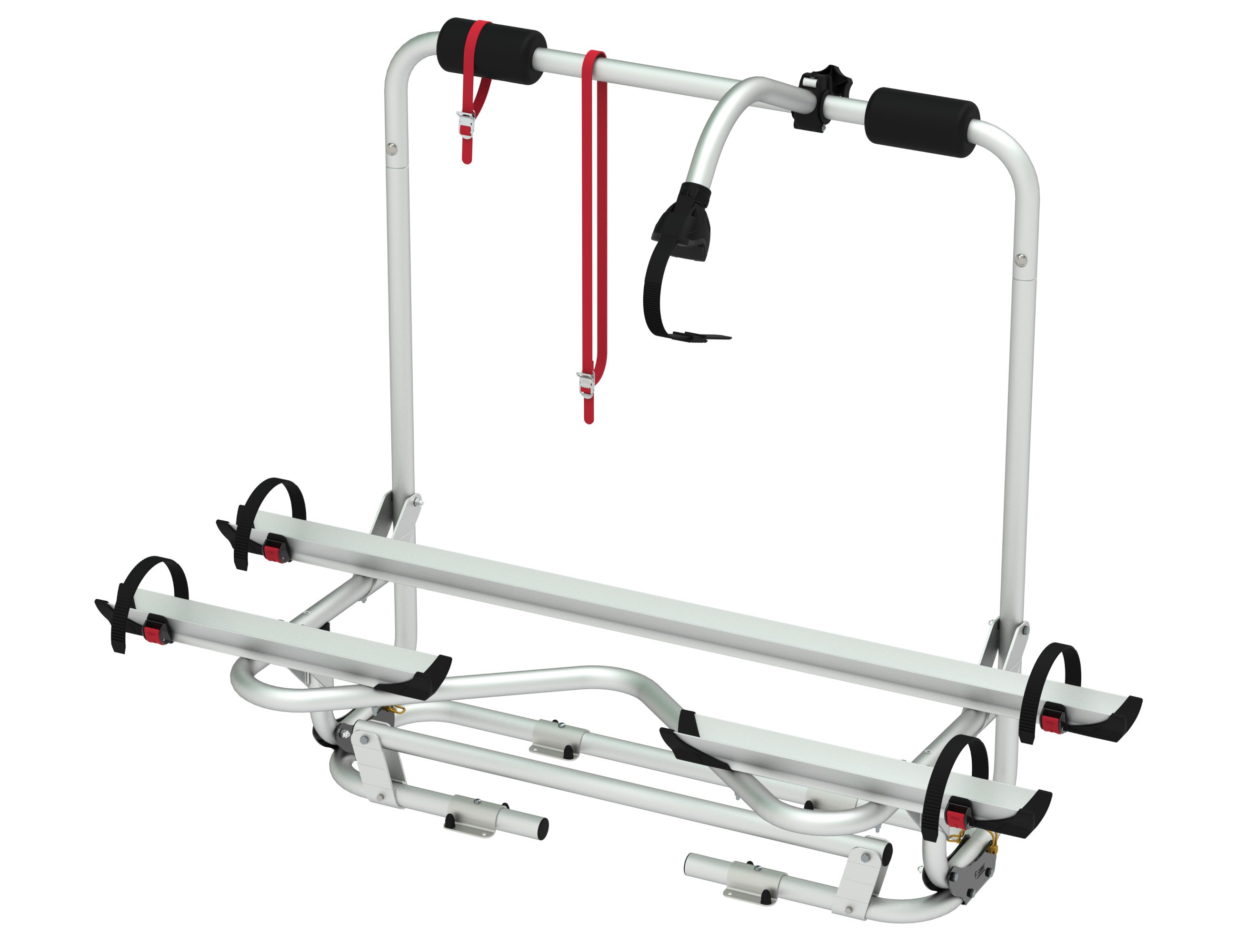

The Fiamma Carry-Bike Caravan XL A Pro 200 is a new improved version of bike carrier from the Caravan XL A PRO line. It carries two bikes and is smaller than Carry-Bike Caravan XL A Pro for installation on shorter drawbars. By holding the top of the bike rack and pivoting the carrier away from the caravan it is possible to open the storage compartment even with the bikes mounted (image shows XL A Pro).

Quick and convenient bike loading. The installation does not require drilling of the chassis.

Carry-Bike Caravan XL A Pro 200 Standard Kit

Supplied as standard with: 2x Rail Quick (bike support), 1x Bike Block Pro 2 (Carry-Bike to bike holder) and 1x Security Strip (buckled strap). Supplied as standard to carry 2-bikes.

Specification:

• Dimension: see images.
• Max. Load: 35 Kg.
• Weight: 7.5 Kg.
• Carries as standard: 2-bikes.
• Carries max.: 2-bikes
• Frame construction: Anodised aluminium.

Features

• Telescopic rail support to fit 2,3 and 4 bikes
• Sturdy rail with reinforced base
• Bull shock absorbers for absorbing shocks and vibrations
• Fast and safe installation

Compatibility

Rear rails offset: 13.5cm

The rear rail offset is the measurement from the furthest forward part of the bike carrier which fits tot he carrier frame, to the centre of the bike rail nearest the caravan. Add this to the measurement from the centre line of your bike to the edge of the pedals to see if this bike carrier will fit your caravan.

For full instructions to work out compatibility see our guide Bike Carriers for Caravan A-frames
