Home > Fiamma Bike Carrier > Carry-Bike Motorhome > Fiamma Carry Bike Pro M Blue

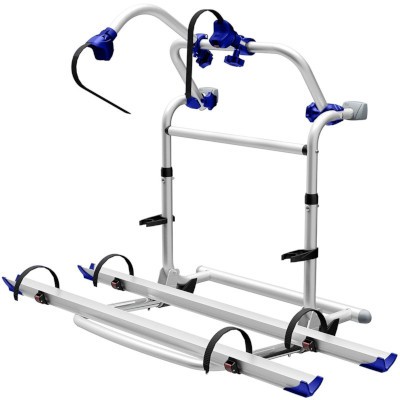

Fiamma Carry Bike Pro M Blue

Fiamma Carry Bike Pro M Blue
Install higher on motorhome to clear lights, number plate or car on tow Fiamma Carry Bike Pro M dimensions Bike rack extension Upgrade kit includes rail and blocker Can be upgraded to carry upto 4 bikes
4%
SKU: 02094-11B
Global Trade Item Number 8004815357191
Manufacturers Part Number 02094-11B

R.R.P.: £298.08
Our price: £286.74 Including VAT @ 20%


£0.00£0.00
    Cancel OK

    3rd Bike Upgrade?

    Select BOTH items to add 3rd bike

    4th Bike Upgrade?

    Select BOTH items to add 4th Bike

    Description:

    Telescopic, rear mounted bike rack for coach-built motorhomes with vertical installation space between 50cm and 80cm. Can bed fitted higher on the motorhome wall to avoid obstructing lights and number plate. The Carry Bike Pro M carries 2 bikes as standard but can be made to hold 3 or 4 bikes with optional upgrade kits.

    The bolt-through-wall installation makes the Fiamma Carry Bike Pro range suitable for motorhomes without pre-installed bike rack mounting brackets, and the bike rack comes with all required fixings and mountings. The Carry Bike pro M model can be installed below an over garage bed and the installation points can be set at range between 50cm and 80cm apart.

    Fiamma Carry Bike Pro is highly recommended by experts in the industry as the strongest bike carrier on the market.

    Video

    Video shows larger Carry Bike Pro model but the operation is the same for Carry Bike Pro M.

    Features

    Fiamma Carry-Bikes use the highest quality anodized aluminium rounded tubes and are manufactured using only long-life stainless steel screws.

    Fiamma Bull Shock Absorber system is fitted as standard to Carry Bike Pro for the best and most reliable shock and vibration absorption during travel. It prevents the vibration of the bike carrying tray passing to the vehicle and reduces stress on the motorhome back wall.

    Rack Holder secures the bike carrying tray in the upright position when you are not carrying bikes.

    Quick Lock is delivered as standard with Quick Safe straps to quickly and safely lock the wheels of the bike on the carrier rail. The Quick Lock strap is easy to release and doesn't involve fiddly straps of ties.

    Easy Position system allows you to off-set the bike rails on the Carry Bike to make it easier to fit the bikes on the carrier without pedals and handle bars clashing.

    ZOOM 4 bikes means it easy to upgrade you bike rack to carry 3 or 4 bikes by purchasing additional upgrade kit either when purchasing your bike rack, or at a later date.

    Bike Block Pro arms grip the bike frame securely. They are easy to fit, anti-scratch and secure.

    Compatibility & Versions

    The Fiamma Carry Bike Pro M is for coach-built motorhomes which do not have pre-installed bike rack mounting points. However, for motorhome with existing fixing points with the same spacing you can purchase Carry-Bike Pro C and use your existing fixings instead of the ones provided in the kit.

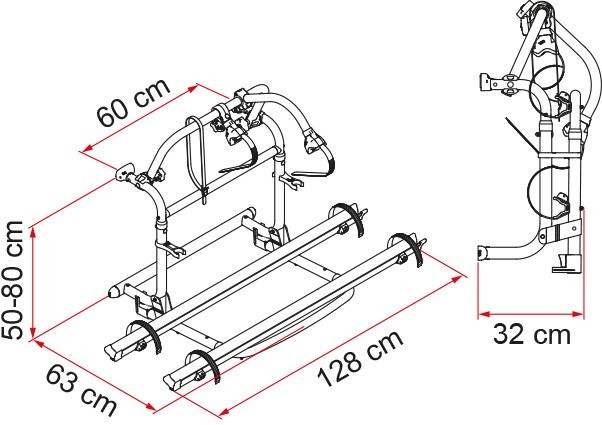

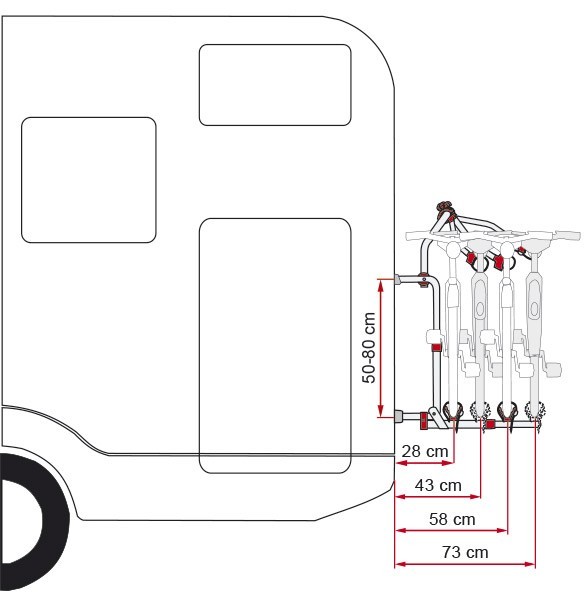

    Carry Bike Pro bolts through the rear wall of the motorhome. Pro M model is for motorhomes where the mounting brackets have 60cm horizontal spacing, and vertical spacing between 50cm and 80cm. See diagram.

    Fiamma Carry Bike Pro C dimensions

    Alternative Versions

    Specification

    Model Max Load Bikes Standard Max. Bikes Carry-Bike
    Weight
    Carry Bike Pro M 60 kg 2 Bikes 4 Bikes 8.5 kg
    • 2 x Rail Quick 128 bike supports
    • 1 x Bike Block Pro 1 Bike frame holder
    • 1 x Bike Block Pro 3 Bike frame holder
    • 2 x Rack Holders
    • 1 x Security Strip
    • Installation kit

    Optional Equipment

    If you purchase the Carry Bike Pro M for 3 or 4 bikes you will also be supplied with the following additional equipment.

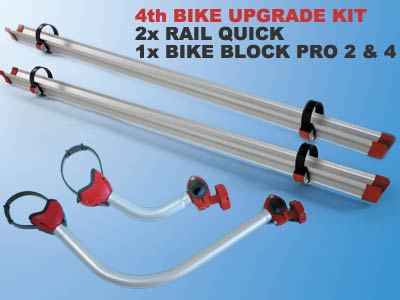

    3rd Bike Upgrade kit - 1 x Rail Quick 128 and 1 x Bike Block Pro 2

    4th Bike Upgrade kit - As above plus 1 x Rail Quick 128 and Bike Block Pro 4

    Downloads

    Click to download Fiamma Carry Bike Pro C Fitting Instructions
