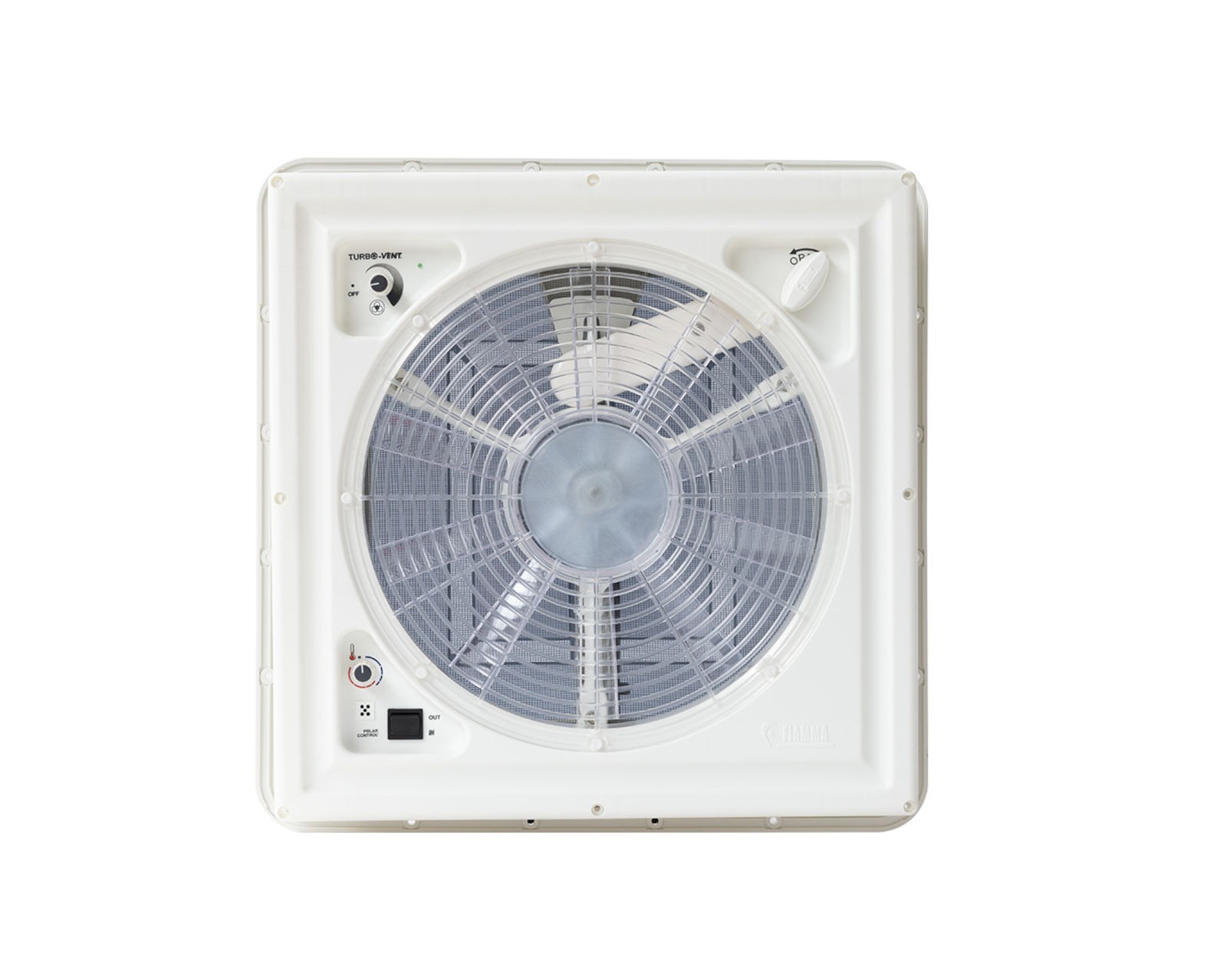

Fiamma 12V Turbo Vent Crystal

Description

Turbo-Vent is a highly efficient 12V air ventilation and extractor system. Ideal for your motorhome, caravan or van conversion.

The turbo vent is silent at high speed and at minimum speeds, which means you can use it at night and still get a good nights sleep.

The Polar Control allows you to save 50% electricity compared with other brands, thanks to a new efficient electronic circuit. The Polar Control system is the thermostat that regulates the incoming and outgoing air of the fan according to the inside temperature of the motorhome. It allows you to set the thermostat so the fan activates when required, even while you're away from the motor caravan.

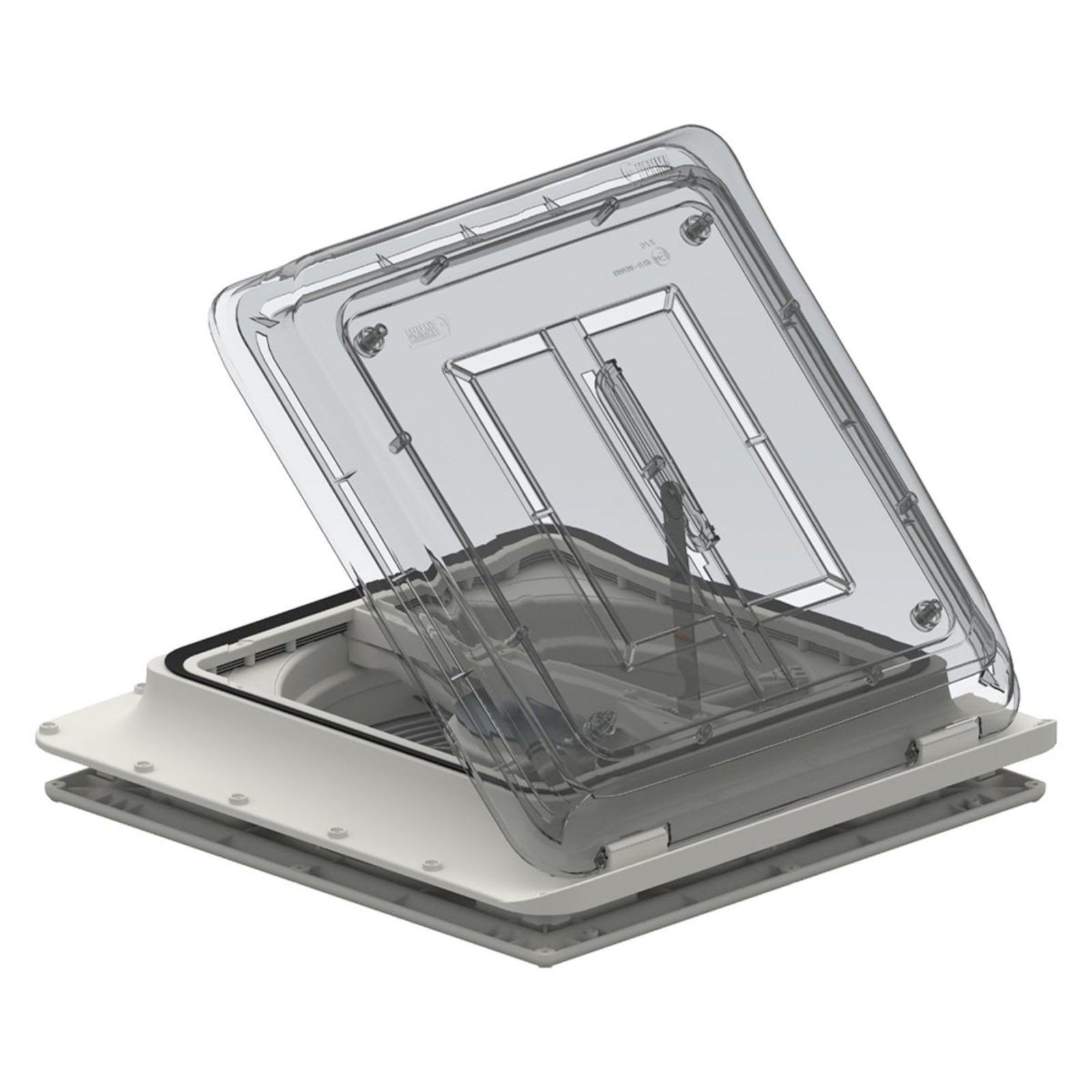

The cover is opened and closed by manual operation with a central arm that provides stability against high winds while travelling with the cover open. Provided with double external mosquito screen to stop leaves and other debris from damaging the fan or entering the motorhome. Offers permanent ventilation even when closed.

Features

• Aerodynamic: Its shape means that no spoiler is needed.
• Permanent ventilations: for constant exchange of air
• Installation: with through screws, wide and reinforced frame
• Variable fan speed

Installation

A fuse must be fitted when installing any electrical circuit and it is very important to fit proper circuit protection. This turbo vent requires a 5amp inline fuse fitting as explained in the fitting instructions.

A FUSE MUST BE FITTED. FAILURE TO FIT THE CORRECT FUSE OR FITTING A FUSE OF A DIFFERENT RATING WILL INVALIDATE YOUR WARRANTY.

Persons installing or working on electrical systems should be competent to do so. If you do not know what you are doing get a professional to do it or seek expert advice.

Specifications

• Tensions: 12V
• Power: 36W
• Minimum electrical input: 0.3 Amp
• Maximum electrical input: 3 Amp
• Maximum air flow: 35 m/3min
• Fan diameter: 30cm
• Permanent air flow: 80cm2
• Weight: 4.6kg
