Description

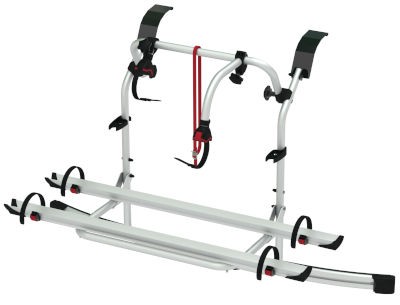

A rear door mounted Carry-Bike which is designed to fit the Ford Custom, Ford Tourneo Custom and Ford Transit Custom Nugget which have a single rear door (tailgate).

It adheres to the lower part of the rear thanks to its contoured profile that follows the shape of the vehicle.

Carry-Bike Ford Custom / Nugget Plus standard kit and upgrades

It is supplied as standard with: 2x Rail Quick Pro (bike support), Bike Block Pro S 1 and S3 (frame to bike holder), 2x Rack Holder (secures the bike support when folded away) and Security Strip (buckled strap). It is supplied as standard to carry 2 bikes but can also be purchased with additional Rail Quick Pro support and Bike Block to carry 3 bikes.

3rd bike upgrade kit: 1x Rail Quick Pro and 1x Bike Block Pro 2.

Specification:

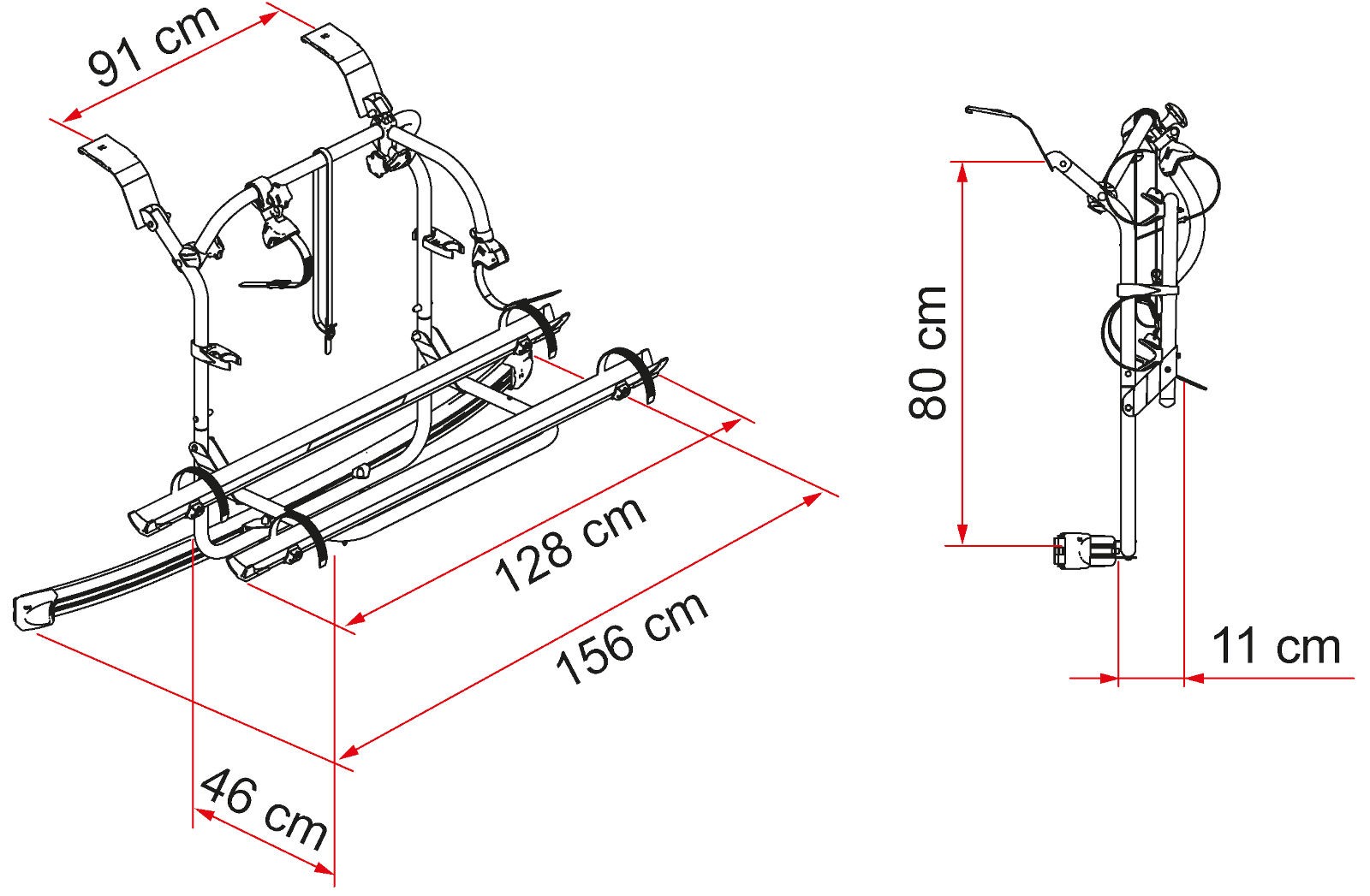

• Dimension: see images.
• Max. Load: 50 Kg.
• Weight: 8.2 Kg.
• TUV Approved.
• Carries as standard: 2-bikes.
• Carries max.: 3-bikes
• Frame construction: Anodised aluminium.

Compatibility

• Ford Custom, Transit Custom and E Ford Tourneo Custom H1 2012 onwards H1 (also with lift roof)
• Ford Transit custom nugget and Ford Cap Land 2015 onwards
• Ford Transit Custom Nugget Plus 2012 onwards
• Ford Cap Land 2015 onwards
• Ford Cap Fan from 2015 to 2015
• Ford Cap Coast 2018 onwards
• Ford Cap Life H1 2019 onwards
